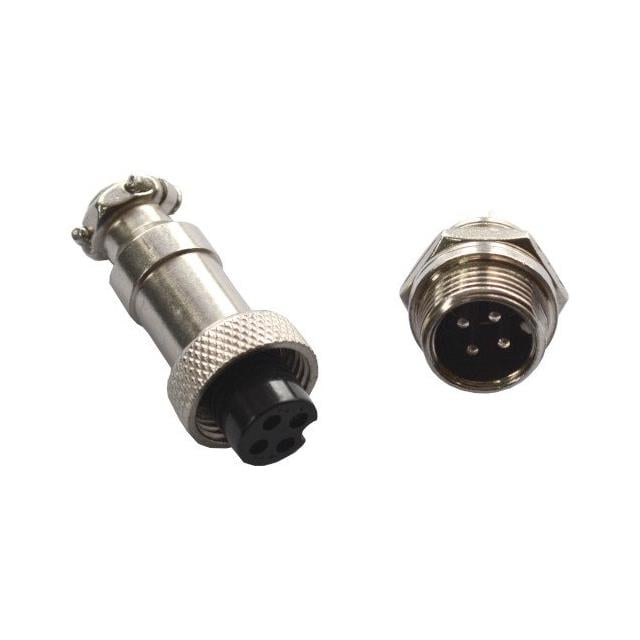

Olimex LTD CONNECTOR-GX12-4
Images are for reference only
Manufacturer
Manufacturer No
CONNECTOR-GX12-4
Availability
In Stock
Packaging
Box
Description
AVIATION PLUG 4 PIN CONNECTORS T
Detailed Description
4 Position Circular Connector Plug, Female Sockets and Receptacle, Male Pins Solder Cup
Datasheet
Payment
Delivery
Mfr
Olimex LTD
Color
-
Series
-
Features
Backshell, Cable Clamp, Coupling Nut
Packaging
Box
Shielding
Unshielded
Orientation
N (Normal)
Termination
Solder Cup
Applications
Aviation
Shell Finish
Nickel
Cable Opening
0.157" (4.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets and Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Zinc
Voltage Rating
250VAC
Insert Material
Phenol Formaldehyde (PF)
Shell Size, MIL
-
Contact Material
-
Mounting Feature
-
Primary Material
Metal
Ingress Protection
-
Number of Positions
4
Shell Size - Insert
12-4
Current Rating (Amps)
5A
Operating Temperature
-50°C ~ 70°C
Contact Finish - Mating
-
Backshell Material, Plating
Zinc, Nickel
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Olimex LTD |
| Color | - |
| Series | - |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Aviation |
| Shell Finish | Nickel |
| Cable Opening | 0.157" (4.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets and Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Zinc |
| Voltage Rating | 250VAC |
| Insert Material | Phenol Formaldehyde (PF) |
| Shell Size, MIL | - |
| Contact Material | - |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | - |
| Number of Positions | 4 |
| Shell Size - Insert | 12-4 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -50°C ~ 70°C |
| Contact Finish - Mating | - |
| Backshell Material, Plating | Zinc, Nickel |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
